Interface introduction

Interface introduction

  • Manual

1. Adding the camera
2. cloud service
3. Sharing the camera
4. Camera settings
5. Camera switch
6. Device list
7. Message
8. Cloud service
9. Users’ login
10. Multi-screen viewing

1. Camera settings
2. Screenshots
3. Enlarge
4. Video playback
5. Alarm notifications
6. Switching sharpness
7. Voice intercom
8. Sound switch
9. More settings
10. Local recordings
11. Cloud storage

No technical service is provided here. Please contact the vendor for your video camera issues. Thank you very much!

YCC365 PLUS, PIXPLUS, EYEPLUS

@2018-2023 ycc365plus.com

Posted on

Functions introduction

Functions introduction

  • Manual

Recording settings

1.  Event recording is started by default, it will record only when an alarm occurs.

If you want to record videos 24 hours, please set it in ‘Device Storage’ >‘ Recording Mode’



2. Click ‘View Playback’ to view the video playback, slide the time bar to view the video.

3. The cloud storage videos will be displayed by default. When it is changed to SD memory card in the video viewing path, the memory card recording videos will be displayed.

Motion detection settings

Motion detection and sound detection are enabled by default and do not need to be set.The alarm notifies once every 10 minutes by default.
Notification frequency can be set in the notification push settings. You can also turn off the alarm notification, motion detection and sound detection in here if you don’t need them.

Detection sensitivity – Set the motion detection sensitivity.
Detection area – Set the motion detection area. After setting, the camera only detects the specified areas. Blue screen indicates detection and gray screen indicates no detection.

Smart Tracking Settings

Smart Tracking is enabled by default, and the camera will follow when an object moves.

No technical service is provided here. Please contact the vendor for your video camera issues. Thank you very much!

YCC365 PLUS, PIXPLUS, EYEPLUS

@2018-2023 ycc365plus.com

Posted on

Connecting to the camera

Connecting to the camera

  • Manual

Scan the code to add the camera

1. Register and log into the software

2.Click‘+’> Smart Camera > Scan to add the device

3. View the app tips, click ‘ ’ after completing the steps, then enter your wifi password.



Camera can be added only after it gave a voice prompt. If there’s no voice prompt, please reset the camera.

4. Align the displayed QR code to the camera lens until the camera makes a beep sound, click (I hear the‘beep’), then wait it to be connected.



If there is no response for a long time, try to change the angle and brighten the phone screen.
Or use other adding methods to add the camera.

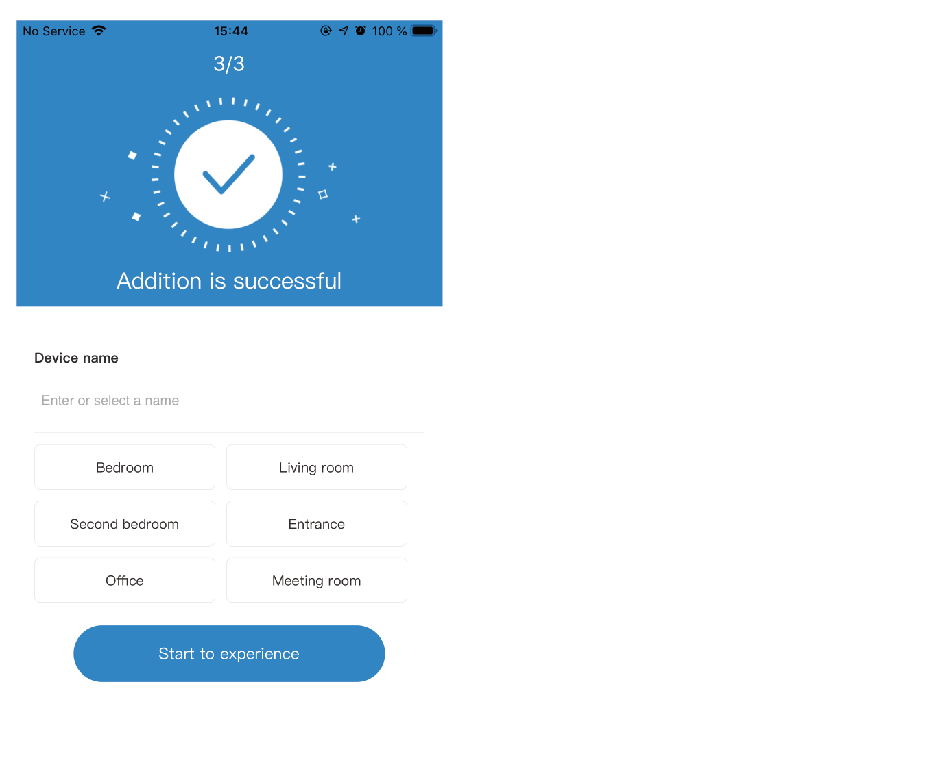

5. Successfully connected, the camera will be online.



If the camera made a beep sound, but the connection failed:
Please check if the wifi password is correct and if the wifi is 2.4 GHz.
Reconnect next to the router.

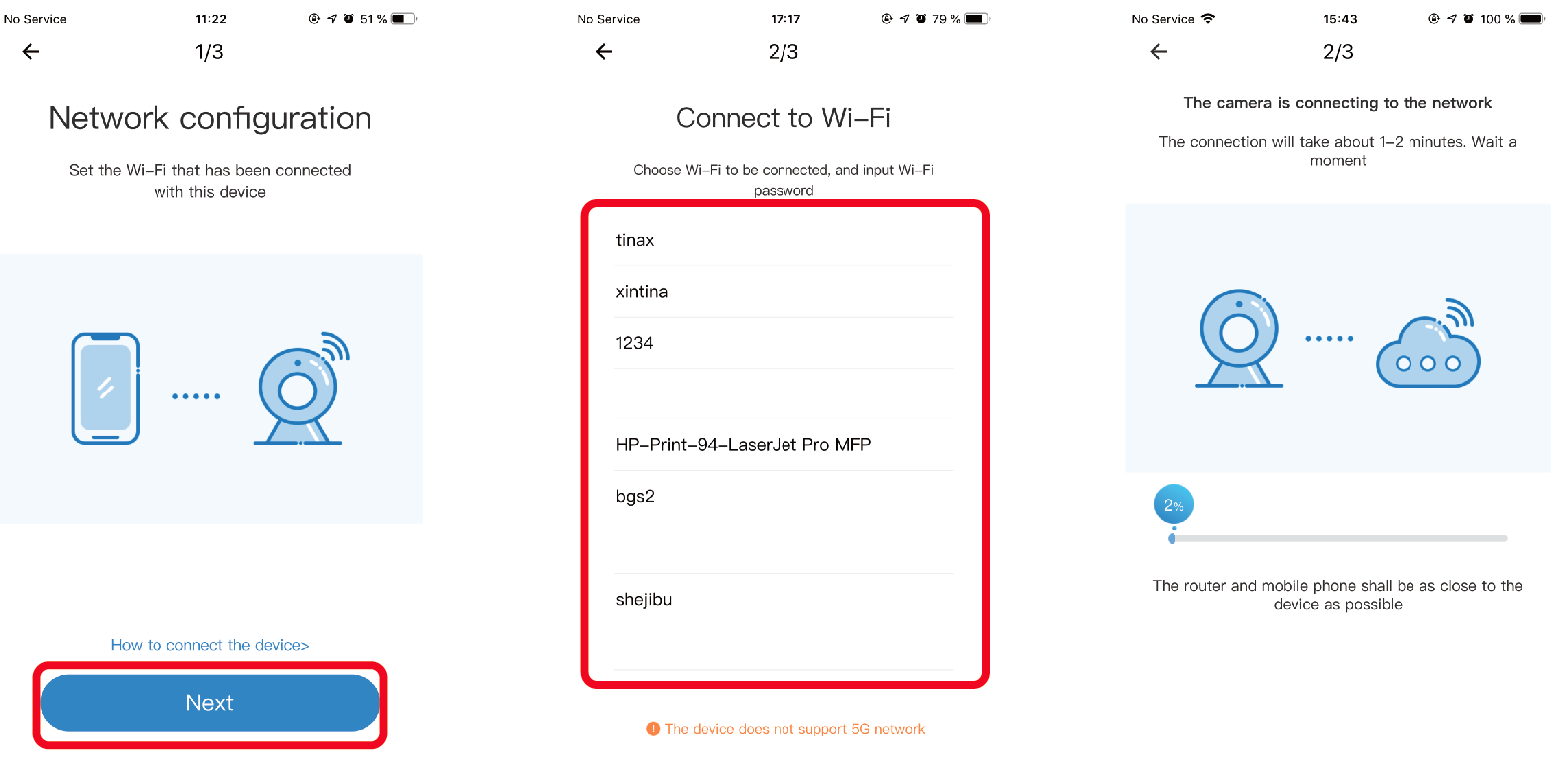

Adding the camera: add by AP hotspot

1. Select Add by AP Hotspot, click‘ ’ after completing the steps.

2. Connect the phone to the wifi named‘ CLOUDCAM_XXX’ and return to the app.

3. Click“ Next”, select your wifi and enter the wifi password, then wait for the connection.

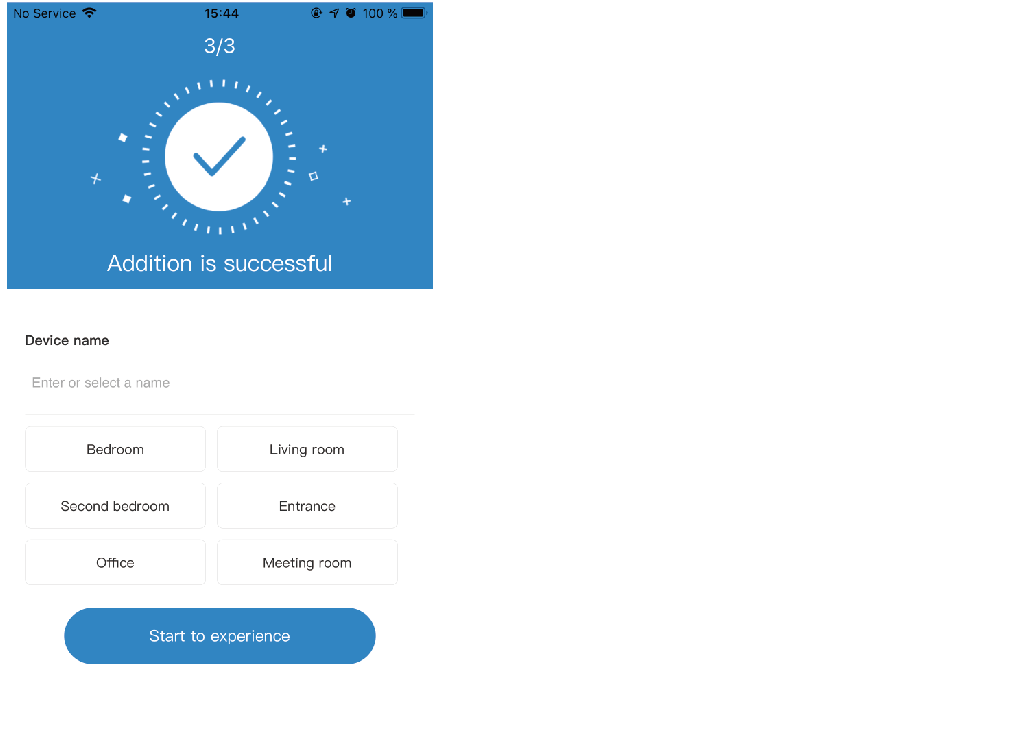

4. Successfully connected. The camera will be online.

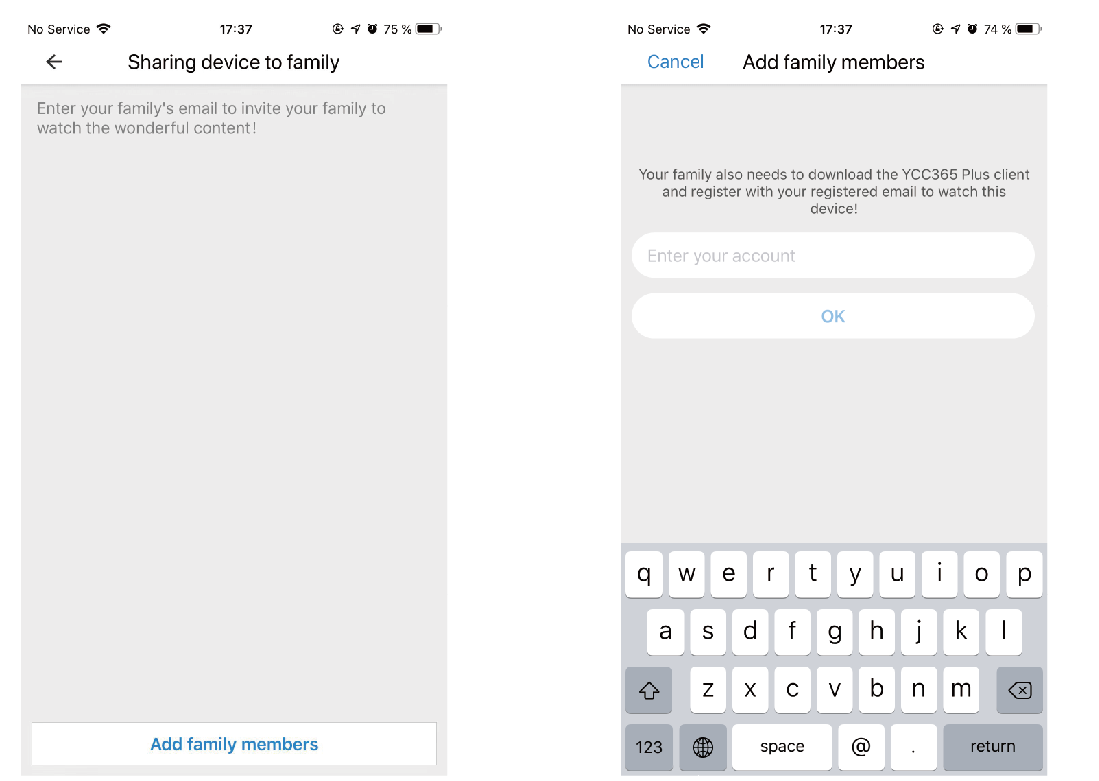

Sharing cameras

1. Click ‘ icon ’ >‘ Add family members’ > Enter the account that you want to share with.

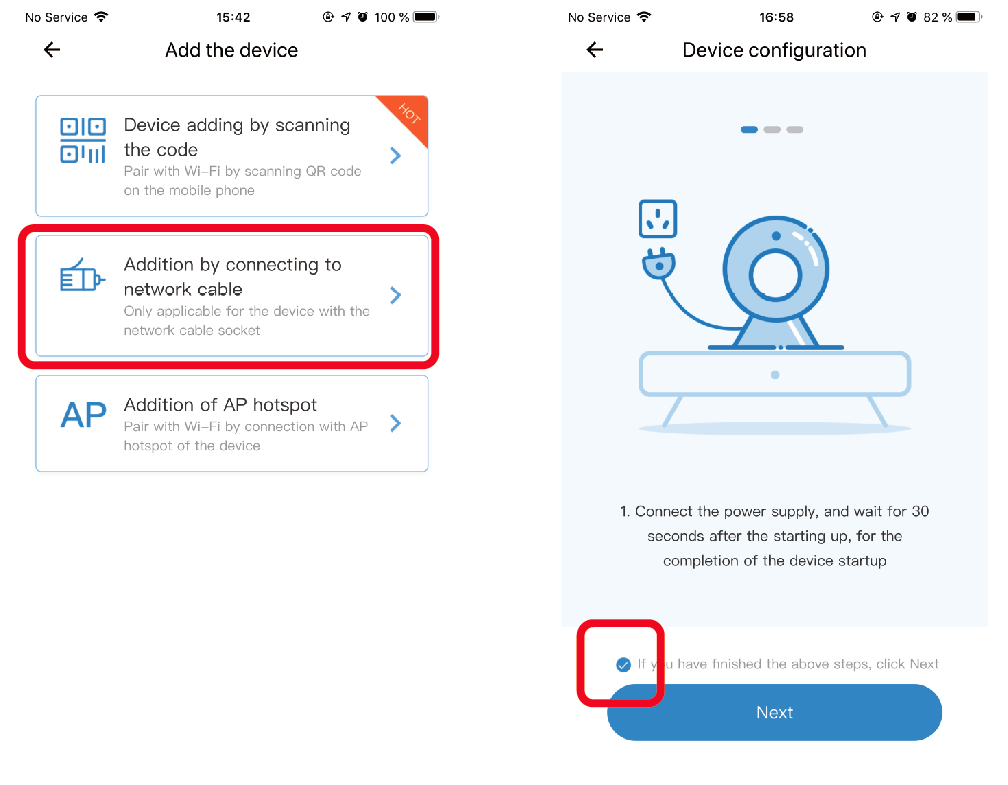

Add by Network cable

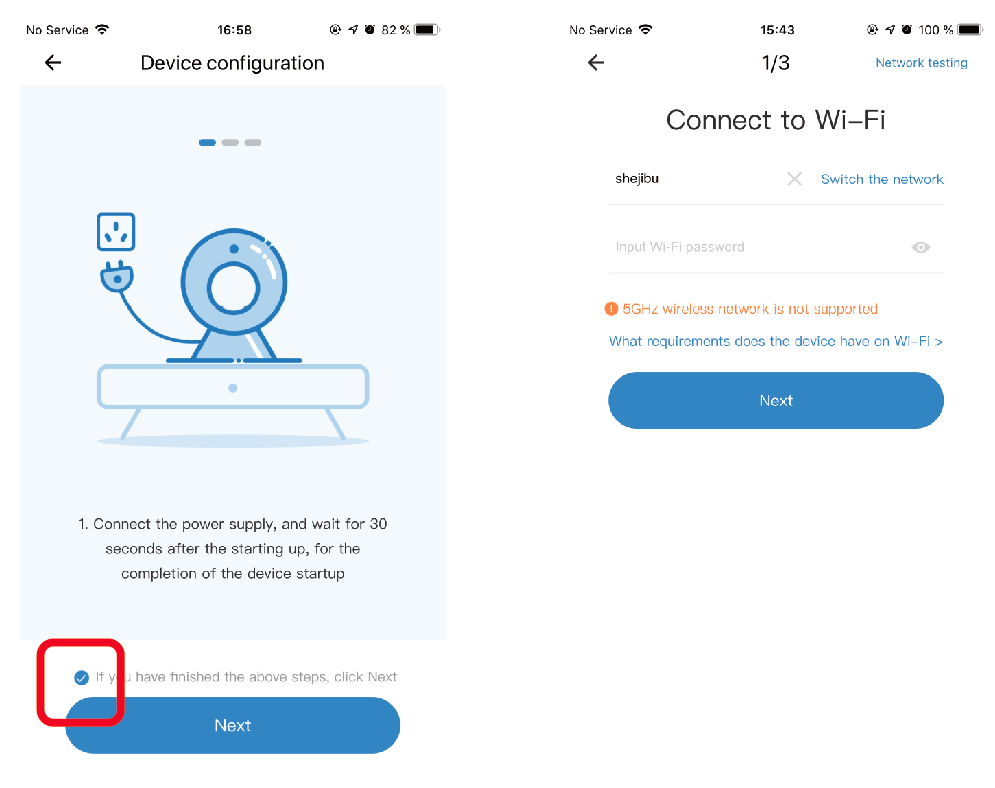

1. Select to add directly by network cable, plug in the network cable to the camera, and click ‘ ’ after completing the steps.

2. Scan the QR code on the camera after hearing the voice prompt from the camera and add the camera.
